Sliding Systems

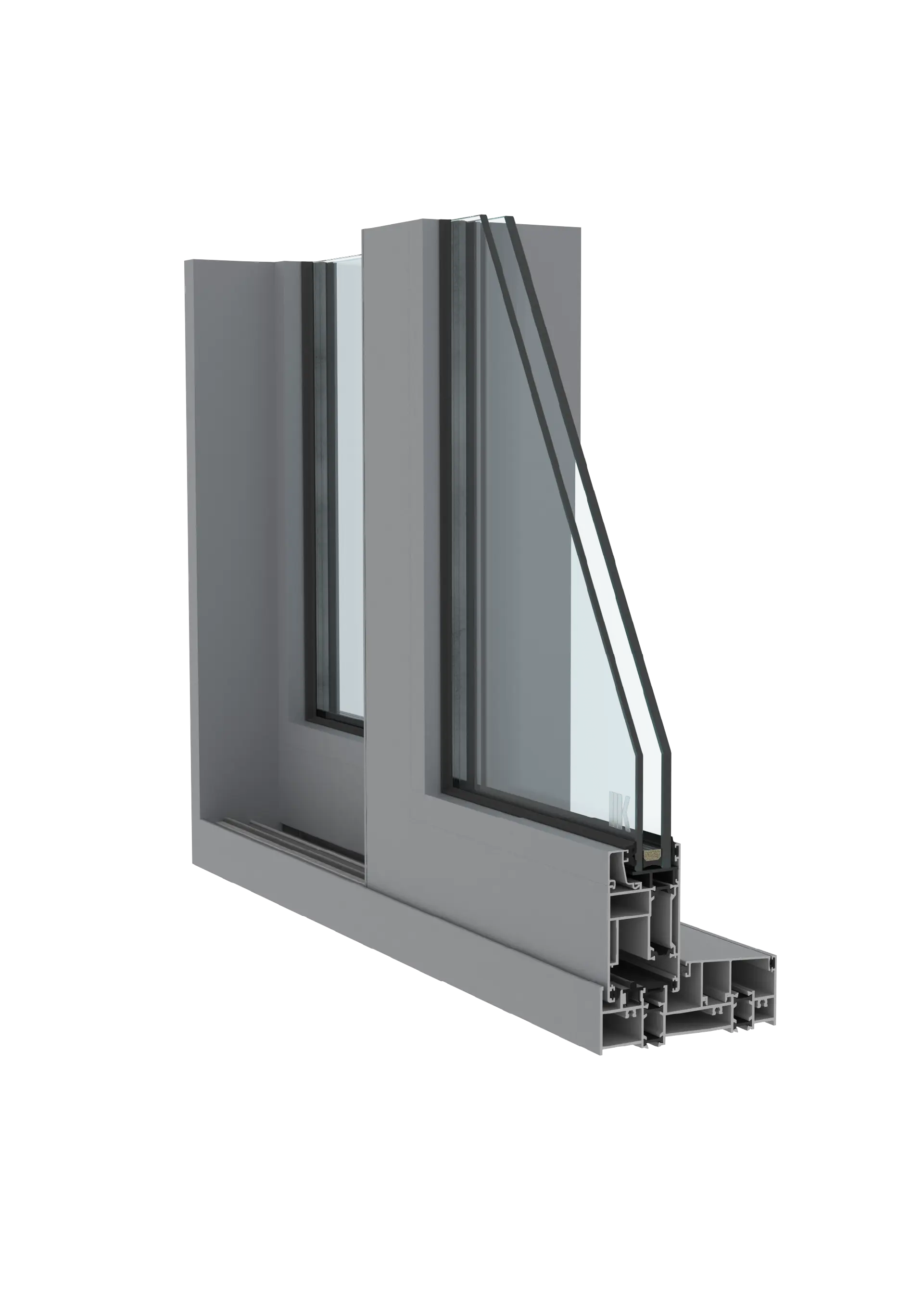

Unique Slide MS

Unique Slide MS, perfect for adapting to any condition, is a robust, insulated, and aesthetically unique sliding system. With a depth of 140 mm and a single-rail operating system, it offers excellent balance and functionality. The inward-operating movable sash of the system facilitates cleaning and comfort, while the 50 mm visible slimline joint feature provides wide viewing angles and a flexible appearance. With its Soft-Close feature, the sashes close slowly, ensuring safe usage. The integrated spring system for large-scale and heavy sashes facilitates lift-and-slide functionality.

The recessed frame structure effectively drains water while the polyamide material heat barriers provide high thermal performance. With its design resistant to high wind loads, it's an ideal solution for large and high-size sliding doors.

The ability to lift weights up to 300 and 400 kg expands the usage area and enhances functionality. Equipped with these features, Unique Slide MS combines durability, insulation, and ease of use, providing users with a top-notch door experience.

Product Information

System Visible Width Frame 22-48 mm
Vent 98 mm
System Depth 1 Rail / Invisible 140 mm
Sash Depth 56 mm
Middle Section Surface 35-101 mm
Glazing Thickness 42 mm
Thermal Insulation Frame 15 mm
Vent 18 mm
Max. Sash Height 3500 mm
Max. Sash Weight 300-400 kg

Technical Specifications

EN 12207 Air Permability Class 4
EN 12208 Water Tightness E 900 (900 Pa)
EN 12210 Wind Load Resistance Class B5 (±2000 Pa)
EN 12210 Safety Wind Load Resistance ±3000 Pa
EN 1627-1630 Burglar Resistance RC1/RC2
EN 10.077-2 Thermal Insulation Uf: 2,94 W/m².K

Technical Details
