Sliding Systems

Unique Slide Max

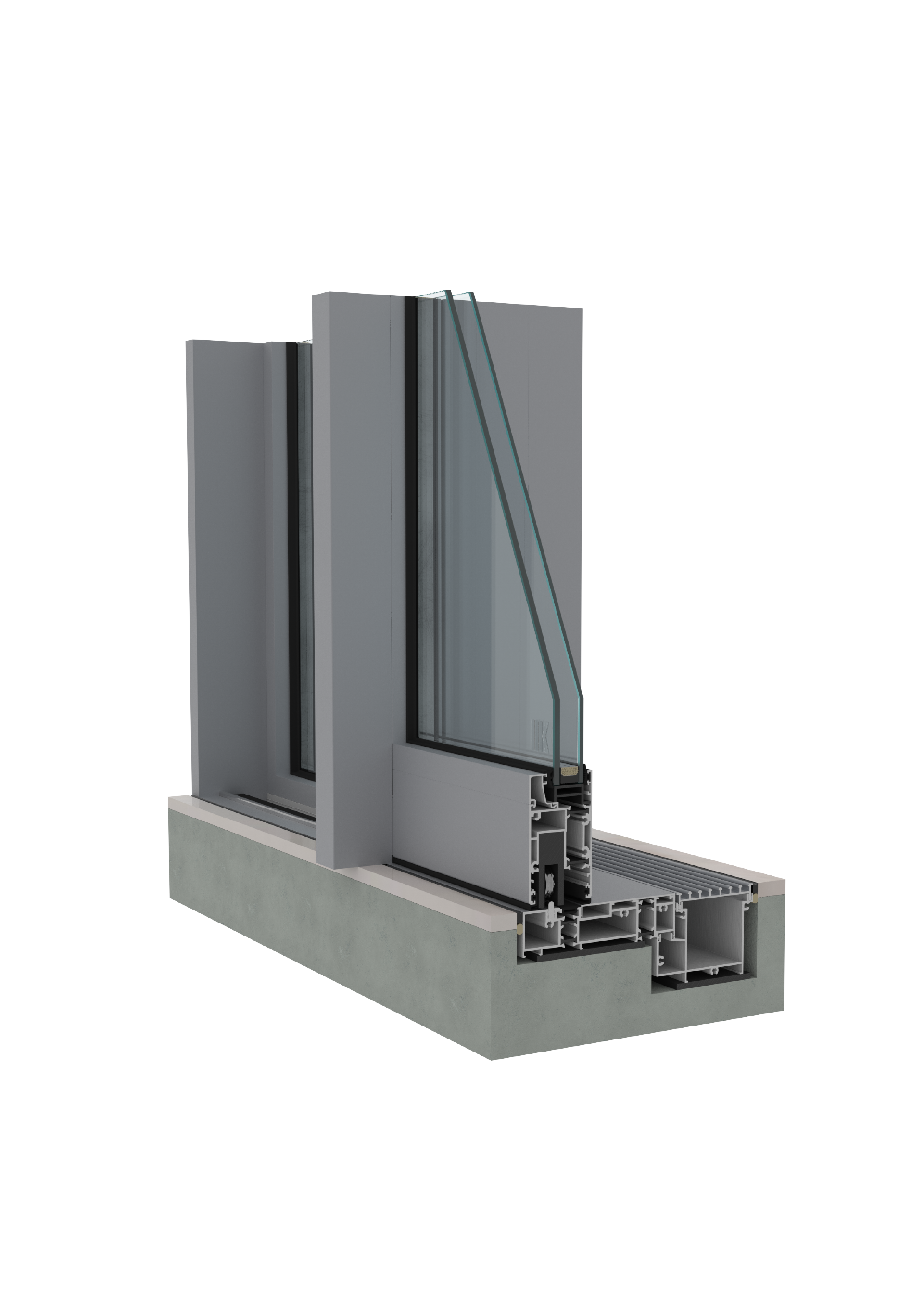

Unique Slide Max is a sliding system that offers exceptional strength, insulation, and aesthetics while adapting perfectly to all conditions. Its 140 mm deep frame design, combined with single and double rail operation, ensures balanced and functional use. The system’s inward-operating sliding sash simplifies cleaning and enhances comfort, while the 35 mm slim visible profile provides wide viewing angles and a sleek appearance. Thanks to its Soft-Close feature, the panels close gently for safe operation. For large-scale and heavy panels, the integrated spring system makes the lift-and-slide function effortless.

The flush-to-floor frame structure effectively drains water, while polyamide thermal barriers deliver high thermal performance. With a design resistant to high wind loads, it is an ideal solution for large and tall sliding doors.

Its ability to support weights of up to 300 kg and 400 kg expands its application range and enhances functionality. Equipped with these features, Unique Slide Max combines durability, insulation, and ease of use to offer users a superior door experience.

Product Information

System Visible WidthFrame22-48 mm
Vent98 mm
System Depth1 Rail / Invisible140 mm
Sash Depth56 mm
Middle Section Surface35-101 mm
Glazing Thickness42 mm
Thermal InsulationFrame15 mm
Vent18 mm
Max. Sash Height3500 mm
Max. Sash Weight300-400 kg

Technical Specifications

EN 12207 Air Permability Class 4
EN 12208 Water Tightness E 900 (900 Pa)
EN 12210 Wind Load Resistance Class B5 (±2000 Pa)
EN 12210 Safety Wind Load Resistance ±3000 Pa
EN 1627-1630 Burglar Resistance RC1/RC2
EN 10.077-2 Thermal Insulation Uf: 2,94 W/m².K

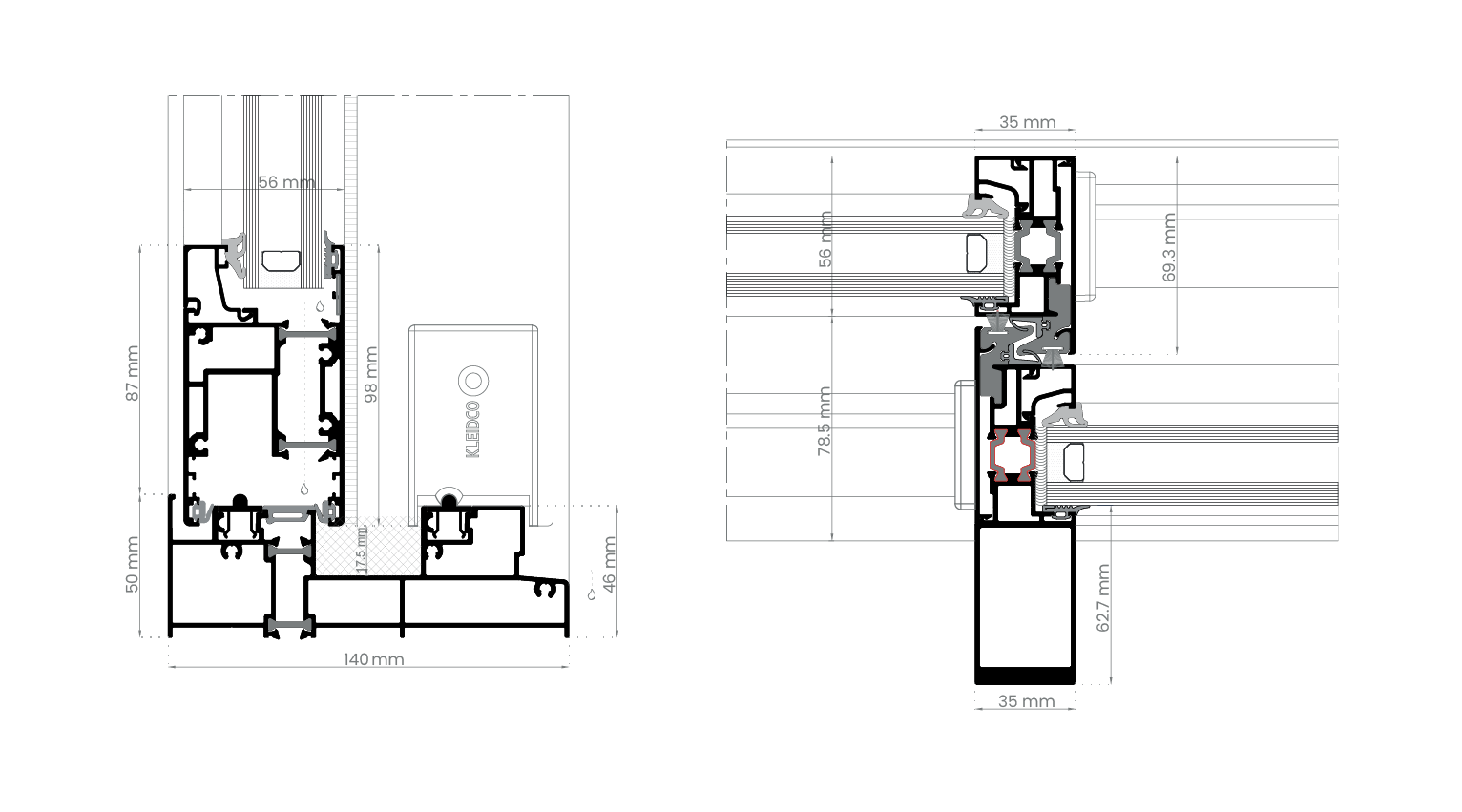

Technical Details
