Facade Systems

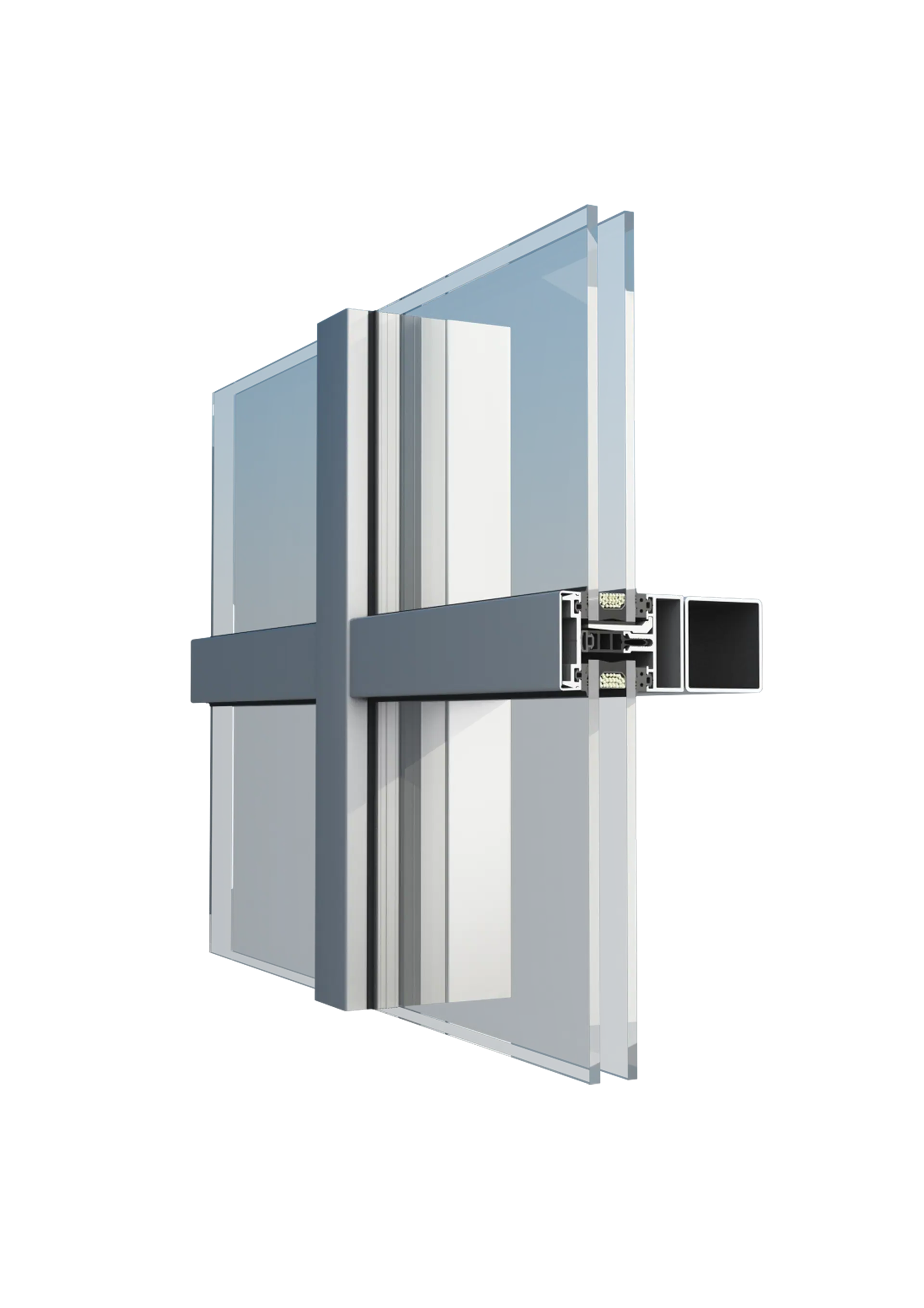

FS 50

FS 50 is highly engineered to meet the demands of contemporary building construction and architecture. FS 50 is a multi-functional system that can be used alongside other Kleidco systems, providing a complete façade solution for various project requirements.

The Kleidco Curtain wall system FS 50 offers a high degree of flexibility and allows maximum transparency with attractive design options for façades areas. Kleidco also provides optimized fabrication and supervision for installation processes.

FS 50 façade system meets all requirements of distinctive architecture. With regard to the energy saving feature, Kleidco systems have Guaranteed performance quality in terms of air permeability, water tightness and wind pressure as well as the Uw.

Technical Specifications

System Visible Width 50 mm
Mullion Depth 18-265 mm
Mullion Inertia Jx 8-4005 cm4
Jy 1230 cm4
Transom Depth 245 mm
Transom Interia Jx 1226 cm4
Jy 4-71 cm4
Glazing Thickness 6-42 mm
Max. Sash Height 2500 mm
Max. Sash Weight 180 kg

Performance Values

EN 12152 Air Permability Class A4 (±600 Pa)
EN 12154 Water Tightness RE 900 (900 Pa)
EN 13116 Wind Load Resistance ±0,96 kN/m2
EN 13116 Safety Wind Load Resistance ±1,44 kN/m2
EN 14019 Impact Resistance Class E5
EN 10.077-2 Thermal Insulation Uf: 1,20 W/m².K

Technical Details
