Sliding Systems

F 35

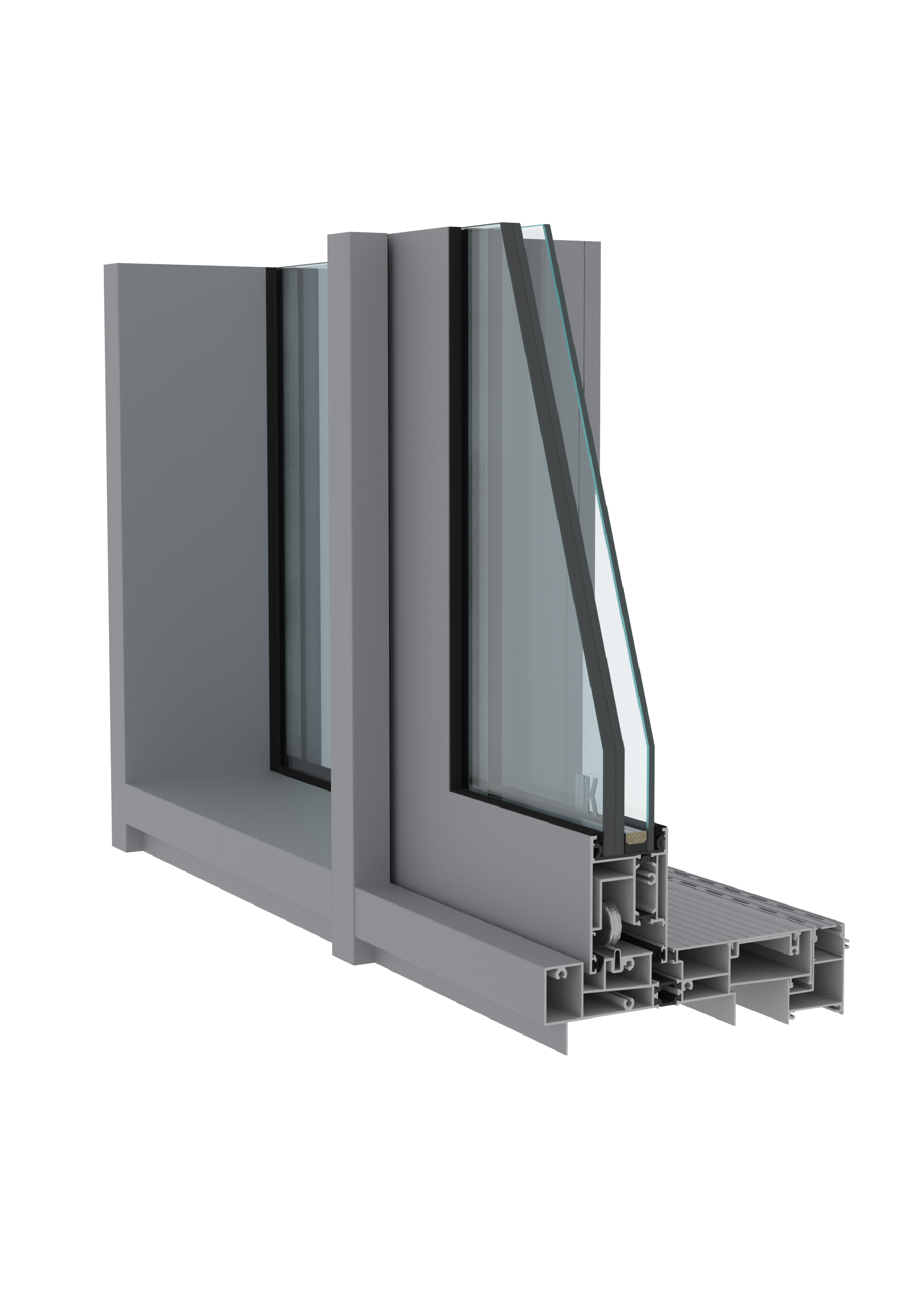

F 35 sistemi, kapaklı cephe ve kaldır-sür sürme doğramayı birleştirerek işlevsellik ve estetiği aynı yapıda sunar. Tek raylı kasa tasarımı sayesinde kanatlar içeride çalışır, 35 mm görünen yüzeyler ise zarif ve minimal bir görünüm sağlar.

Wide viewing areas are achieved at the junctions of the façade and door. The slim interlock design delivers a maximum panoramic experience. The soft-close system ensures slow and safe sash closure, while spring integration in sashes over 200 kg allows for easy operation.

The floor-recessed frame structure and concealed drainage profiles enable efficient water discharge. Polyamide and anti-bi-metal thermal barriers provide high thermal performance and durability, creating superior resistance against significant temperature differences between indoor and outdoor environments. The robust sash design ensures protection against strong winds and allows for spanning large openings of up to 3.2 m x 3.5 m. The system supports lift-and-slide sashes weighing between 300–400 kg.

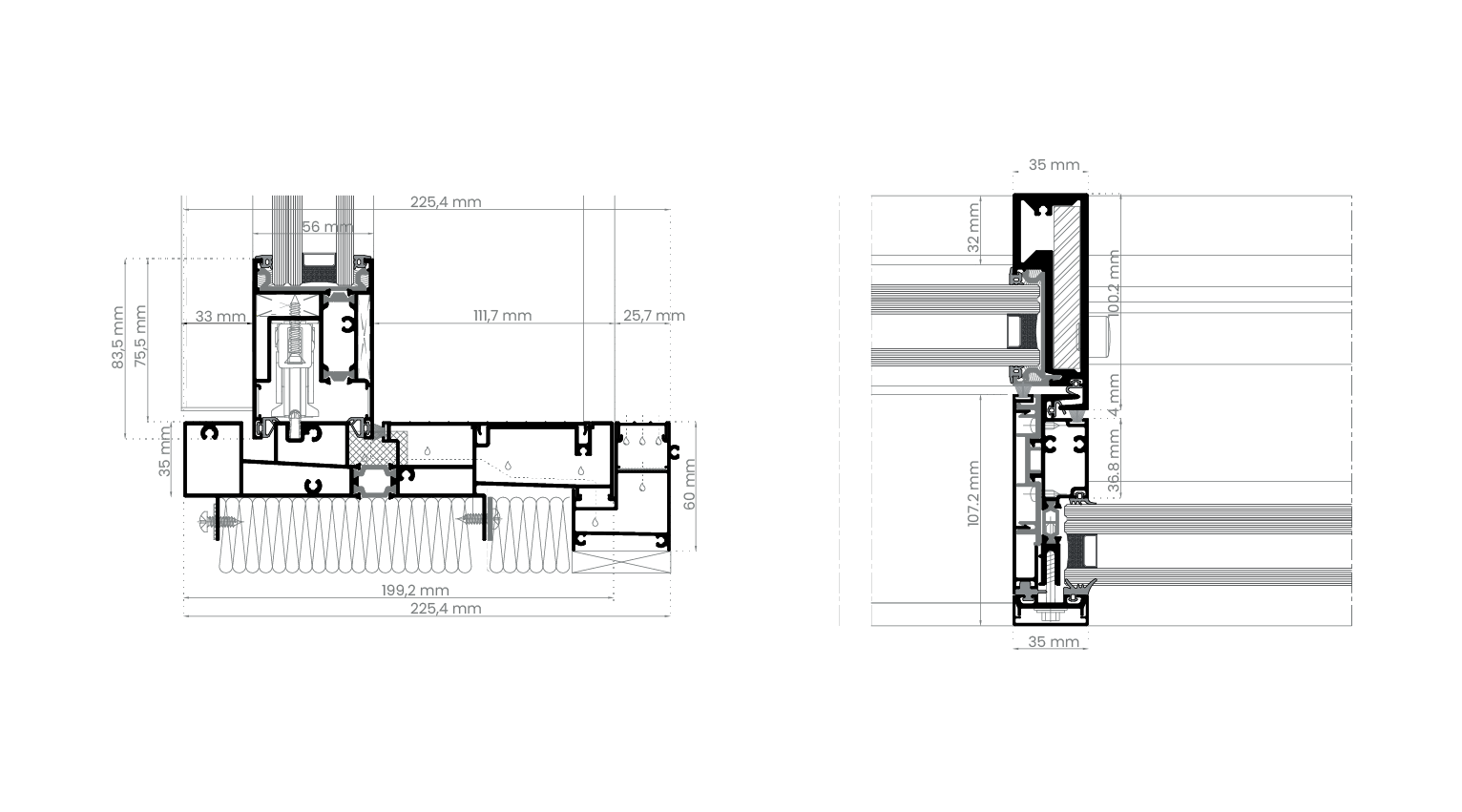

Product Information

System Visible Width Vent 35 mm
System Opening Width 110 mm
Mullion Depth 135 mm
Mullion Inertia Jx 214 cm4
Jy 14 cm4
Transom Depth 140 mm
Transom Interia Jx 168 cm4
Jy 13 cm4
Sash Depth 56 mm
Middle Section Surface 35 mm
Max. Glazing Thickness 36 mm
Thermal Insulation 15 mm Anti Bi-Metal
Max. Sash Height 3200–3500 mm
Max. Sash Weight 300–400 kg

Technical Specifications

ASTM E283 Air Permability 600 Pa (±12.53 psf)
ASTM E331 Water Tightness 600 Pa (12.53 psf)
ASTM E330 Wind Load Resistance 1170 Pa (±24.44 psf)
ASTM E330 Safety Wind Load Resistance 1755 Pa (±36.66 psf)
EN 14019 Impact Resistance Class E5
EN 10.077-2 Thermal Insulation Uw: 1,70 W/m².K
EN ISO 10140-2 Airborne Sound Insulation Test 41 dB
