Door - Window Systems

Basic 56

Basic 56 Kleidco system is designed to give architects an integrated window and door system, allowing flexibility of design whilst providing good thermal and acoustic insulation.

Basic 56 brings you chance to reduce initial investment cost within thermal insulated systems. The main difference between the two systems.

In addition to them, Basic 56 has high quality with certified performance values. It has increased static loads and functionality in case of severe weather conditions and increased level of security. As a result, it makes Basic 56 a competitive architectural solution.

Besides Modern design of Basic 56, the system includes all types of inward and outward opening. The range of combinations available allows the system to respond to the needs of the building.

Technical Specifications

System Visible Width Frame 48-80 mm
Vent 42-60 mm
System Depth Frame 56 mm
Vent 65 mm
Max. Glazing Thickness 46 mm
Thermal Insulation Frame 20 mm
Vent 16 mm

Performance Values

EN 12207 Air Permability Class 4 (±600 Pa)
EN 12208 Water Tightness Class E (±1200 Pa)
EN 12210 Wind Load Resistance Class C3 (±1200 Pa)
EN 12210 Safety Wind Load Resistance ±1800 Pa
EN 1627-1630 Burglar Resistance RC1/RC2
EN 10.077-2 Thermal Insulation Uf: 2,76 W/m².K

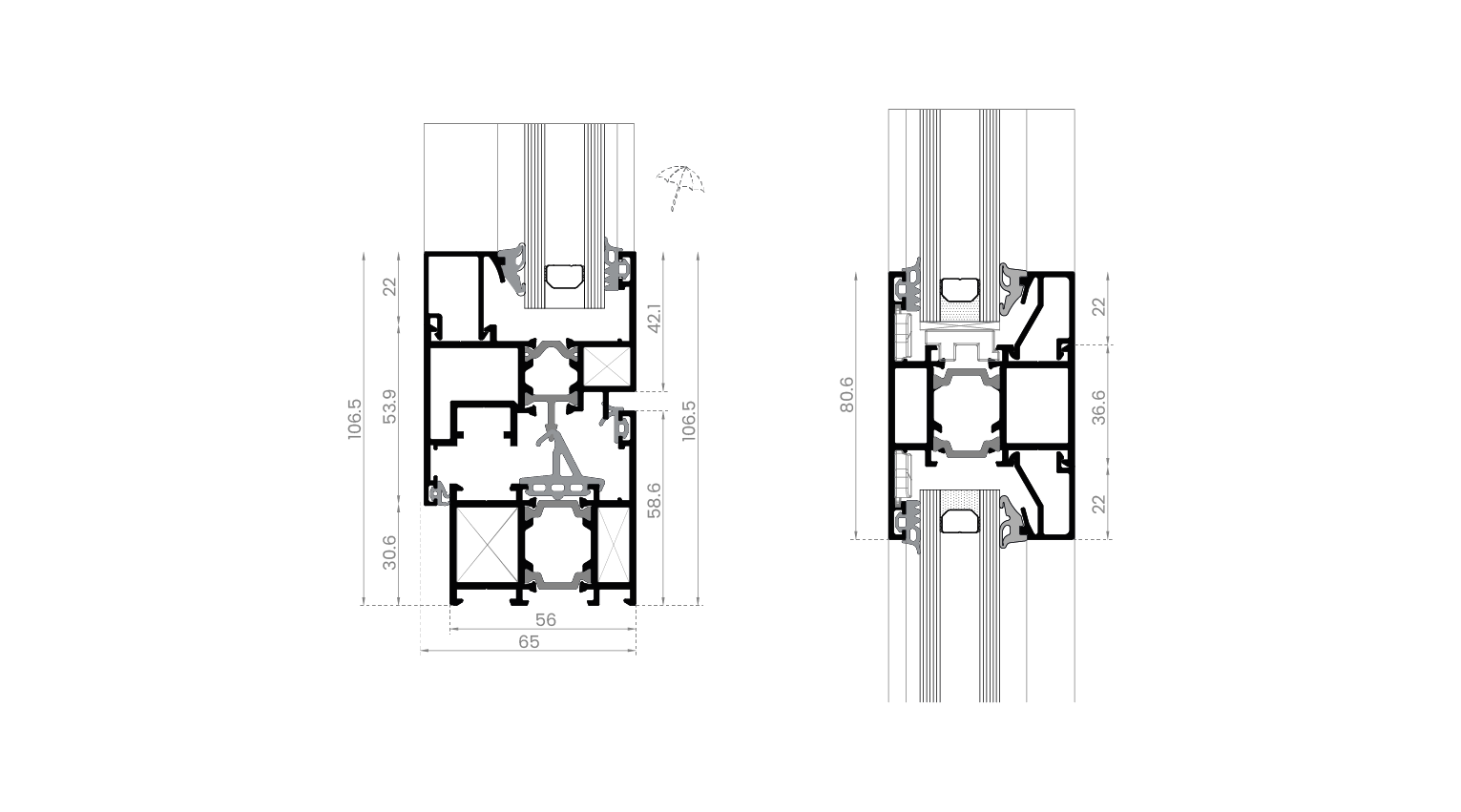

Technical Details
